Brand Name: Yongda
Model Number: WZP-120KW
Place of Origin: Henan, China (Mainland)

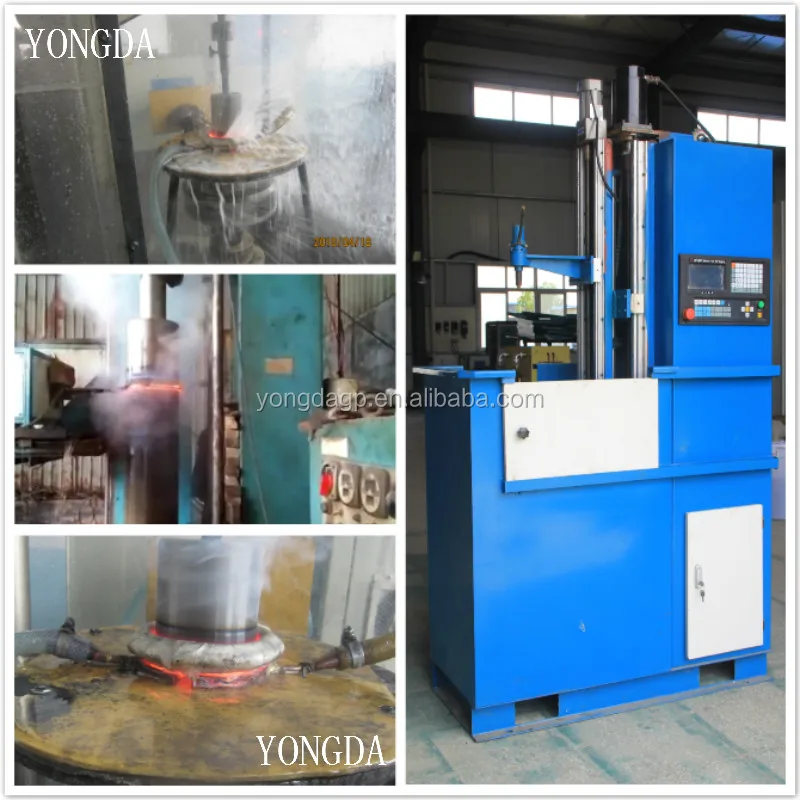

Yongda shaft and gears hardening high frequency induction quenching machine,induction heater 120KW 10-80KHZ
We, shenqiu Yongda high frequency equipment Co.,ltd has more than 20 years production and sales experience . Our full solid state induction heating hot sale at domestic and also , recently , yongda brand got many praised in international market.
We have capacity produce induction heating machine and CNC induction hardening machine tool by ourselves.

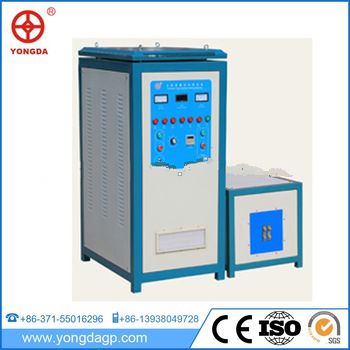

Technical parameters of WZP series shaft and gears induction quenching machine,induction heater 120KW 10-80KHZ
| Model | WZP-60 | WZP-120 | WZP-160 | WZP-200 | WZP-300 |
| Worker power | Three phase 380V/50-60Hz | Three phase 380V/50-60Hz | Three phase 380V/50-60Hz | Three phase 380V/50-60Hz | Three phase 380V/50-60Hz |
| Input voltage | 320-420V | 320-420V | 320-420V | 320-420V | 320-420V |
| Input current | 3-60A | 6-120A | 6-160A | 6-200A | 6-300A |
| Output power | 35KW | 70KW | 85KW | 120KW | 160KW |
| Oscillation frequency | 15-30KHz | 10-35KHz | 10-50KHz | 10-80KHz | 15-30KHz |
| Efficiency | 100% | 100% | 100% | 100% | 100% |
| Continuous load rate | 100% | 100% | 100% | 100% | 100% |
| Cooling water pressure | 0.1-0.3mpa | 0.1-0.3mpa | 0.1-0.3mpa | 0.1-0.3mpa | 0.1-0.3mpa |
| Generator weight | 41kg±5% | 65kg±5% | 83kg±5% | 181kg±5% | 173kg±5% |
| Transformer weight | 37kg±5% | 70kg±5% | 80kg±5% | 143kg±5% | 205kg±5% |
| Generator dimensions (L*W*H)mm | 500*360*455 | 660*400*790 | 800*490*1100 | 980*720*1560 | 820*700*1700 |
| Transformer dimensions (L*W*H)mm | 590*330*650 | 600*400*380 | 860*580*730 | 910*620*820 | 1100*590*590 |
| Temperature protection | 50 ºC | 50 ºC | 50 ºC | 50 ºC | 50 ºC |
Control panel:multi-functions ,complete protecting itself. The machine has over voltage,over current,temperature is over high,lack of water, lack of phase,etc, alarm lamps indicators. can automaticly control and protection the machine itself.

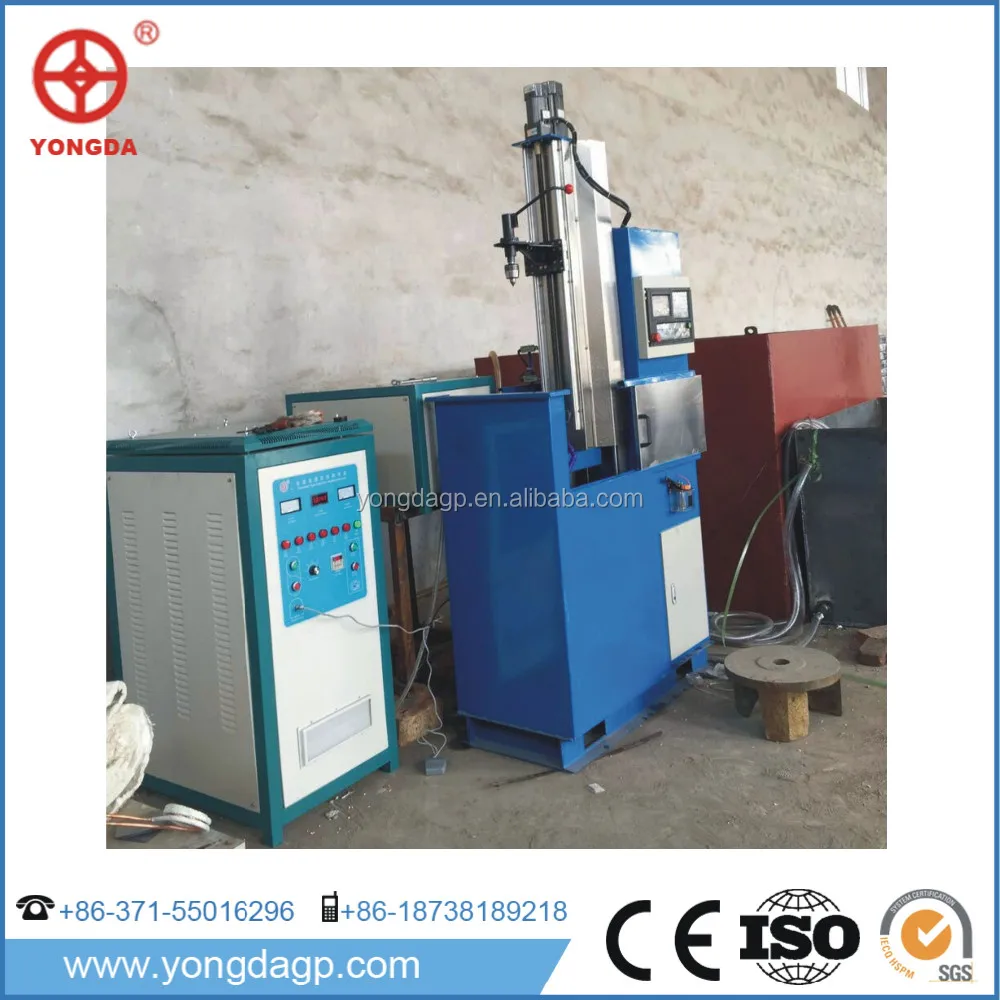

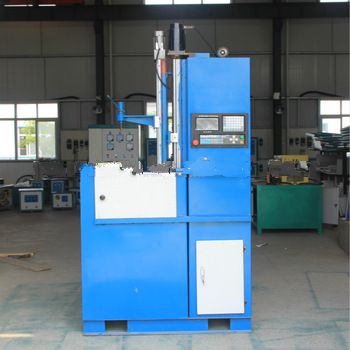

Main Parameters of CNC induction hardening machine tool
| CNC hardening machine tool | YD-600 |
| biggest quenching length(mm) | 600mm |
| max tactical diameter(mm) | ≤φ400 |
| work piece move speed(mm/min) | 1-50 |
| rotation speed(r/min) | 40-150 |
| tip moving speed(mm/min) | 480 |
| work piece weight(kg) | ≤50 |
| input voltage(v) | three phase 380 |
| totally motor power(kw) | 1.1 |
| quenching work pieces per time | single |
| Dimension(L*W*H) | 1200*110 0*3400mm |
| Weight | 2500kg |
| Quenching method | continues scanning quenching, timing quenching, sectional scanning quenching |
| Cooling method | spraying quenching liquid |
| Machine control method | CNC controlled Operation Method: Manual or Auto |
Features of shaft and gears hardening high frequency induction quenching machine
1, the machine uses PC-industrial digital control systems, high performance, debug and easy to use, to the greatest degree of quenching the workpiece to meet the complex needs.
2, the machine can achieve quenching mode: continuous scan quenching, and quenching, sub-continuous scanning quenching (by the level of sub-setting, no limit switch, the same below), while sub-quenching.
3, this machine is suitable for the typical artifacts (in the appropriate size range) axis: a variety of shaft, step shaft, gear shaft, cam shaft, axle, the cylindrical disk-type parts, end so on.
4, the machine control system for reserve electrical heating and cooling water quenching control interface. According to the process of quenching process and the need to control the cooling process.
5, low running costs. Just run the workpiece drive motor 250W, machine power consumption less than one-fifth of machinery and equipment.
6, the fuselage structure by profile, low cost, light weight, economical and practical.
7, easy maintenance, low failure rate, no leakage.
8, high degree of automation and production efficiency.
9, rail uses linear bearings, high precision, small friction, long life.
10, with heavy equipment through the sprocket, chain balance the weight.
Application range of shaft and gears hardening high frequency induction quenching machine
Various types of hardware, electrical, hydraulic, pneumatic components, automobiles, and motorcycle parts and other mechanical parts of the surface of the metal, bore, in part or in whole quenching. Such as: hammer, knife, scissors, pliers and various types of shafts, cams, sprockets, gears, valves, ball pin, large-scale Machine Tool, ductile iron quenching.
My company are in shaft and gears induction quenching machine industrial exhibitions
Packing for shaft and gears hardening high frequency induction quenching machine
Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
Accessories: induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air.
